[Usittne] "Fire Box" Trick for "Pippin"

[Peter Watson]

Hi Jeff,

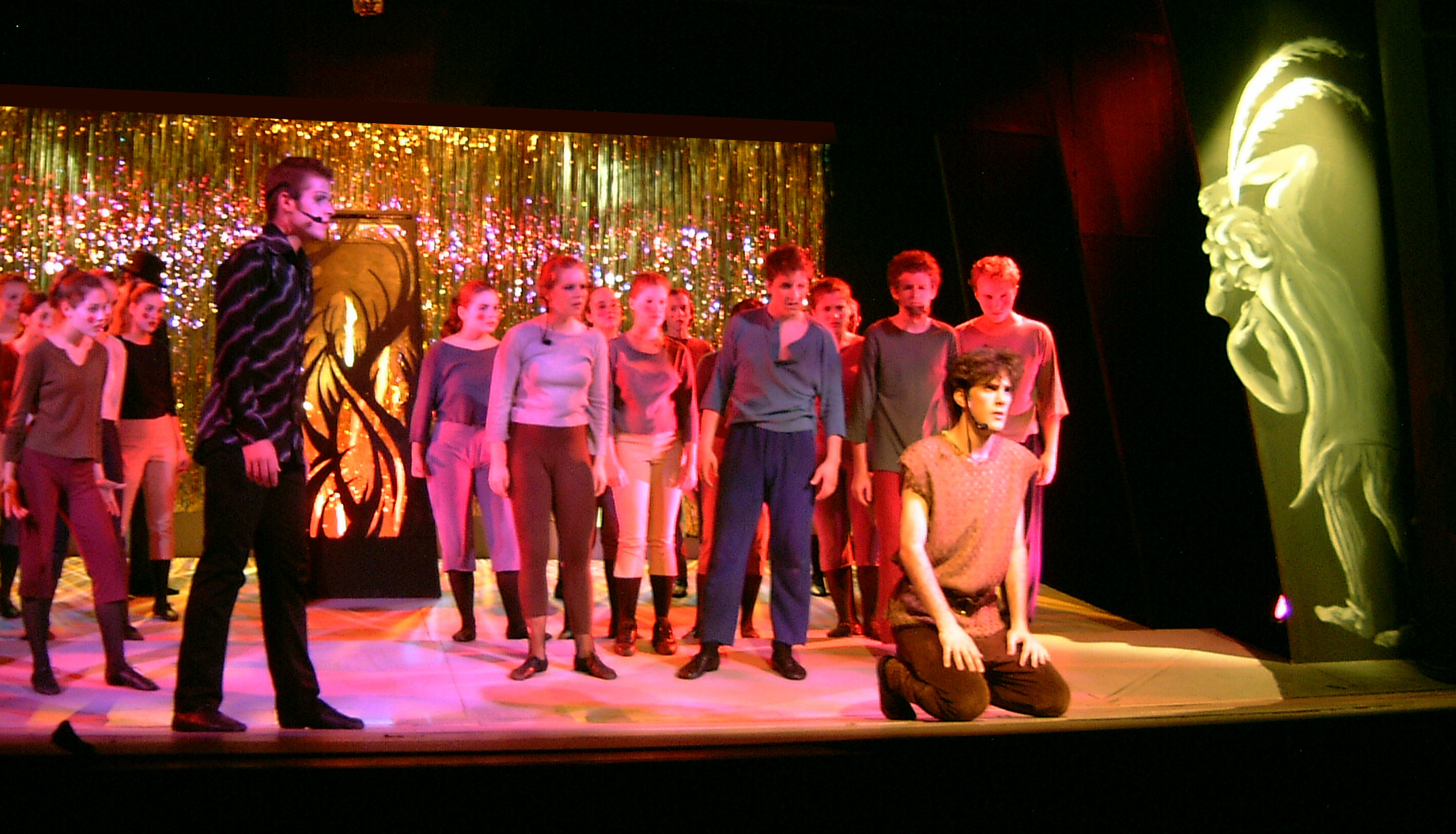

attached is a pic of one I built for Concord Youth Theatre a couple of
years ago

The base contained a strong fan and small red, orange, yellow lamps.
The front was two sheets of plexiglass separated by about two inches,
The front sheet of plexi had the black "negative space" flame shapes painted on.
In back of the black shapes were pins spanning the distance between
the 2 sheets of plexi.
Attached to these pins were hanging pieces of mylar.
The fan was sealed in such a way that the air current passed only
betseen the two sheets of plexi.
At start of the effect the fan turned on and blew the mylar into
flicker mode - the programmed lamps did the rest.
The "door" to the box was on the side.

Good luck

Peter Watson
www.peterwatsonstagedesign.com
978 844 1404

On 5/9/05, Jeff Gardiner <jeffg at erols.com> wrote:
> I am looking for a Non-Pyro "Fire-Box" Trick for the production of
> "Pippin" at Turtle Lane Playhouse opening in July.
>
> Also, if you have ideas or plans to build a Non-Pyro "Fire Box"
> please contact me.
>
> Thanks,
> Jeff
>
> --
> -=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-
>     Jeff Gardiner                            Voice:  781-449-2778
>     Set & Lighting Designer                  Mobile: 617-416-2388
>     398 Central Ave.                      Email:  jeffg at erols.com
>     Needham, MA  02494          Web:  http://www.erols.com/jeffg/
> -=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-
> _______________________________________________
> USITTNE mailing list
> USITTNE at mit.edu
> http://mailman.mit.edu/mailman/listinfo/usittne
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 67 Step into the Fire
Type: image/jpeg
Size: 780554 bytes
Desc: not available
Url : http://mailman.mit.edu/pipermail/usittne/attachments/20050510/fa6a5dfa/attachment.jpg
